Diamonds for minimally invasive treatment

The Robot Points FG Diamonds MI permit delicate work, as well as the best possible protection of enamel and dentine plus the well-directed removal of material. Six different shapes are available for preparing everything from wedge-shaped defects to occlusal cavities.

The differently shaped, delicate abrasives have a very homogeneous grit (100 μm, standard). The very short head length (0.7 – 2.0 mm) and a slender shank neck ensure an unimpeded view on the prepared surface. For precise preparation, these instruments are used at a maximum speed of 300,000 rpm.

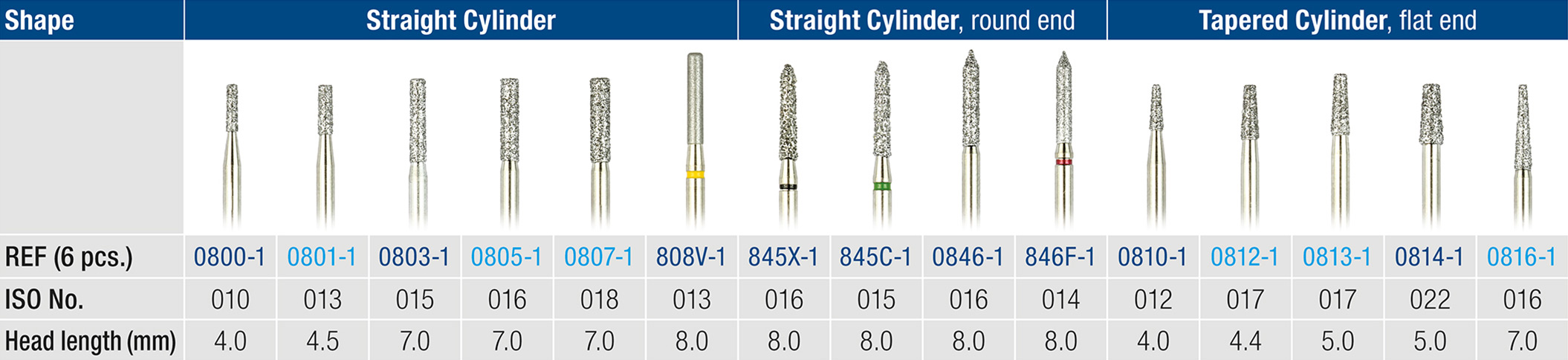

Robot Points FG: shapes, ISO numbers and article numbers (1–10)
Shape	Straight Cylinder						Straight Cylinder, round end

REF (6 pcs.)	0800-1	0801-1	0803-1	0805-1	0807-1	808V-1	845X-1	845C-1	0846-1	846F-1
Max. speed (rpm)	300,000	450,000	300,000	450,000	450,000	300,000	300,000	300,000	300,000	300,000
ISO No.	010	013	015	016	018	013	016	015	016	014
Head length (mm)	4.0	4.5	7.0	7.0	7.0	8.0	8.0	8.0	8.0	8.0

Robot Points FG: shapes, ISO numbers and article numbers (11–22)
Shape	Tapered Cylinder, flat end

REF (6 pcs.)	0810-1	0812-1	0813-1	0814-1	0816-1	817C-1	0818-1	0820-1	820F-1	0822-1	0824-1	0830-1
Max. speed (rpm)	300,000	450,000	450,000	300,000	450,000	300,000	300,000	300,000	300,000	160,000	300,000	300,000
ISO No.	012	017	017	022	016	019	021	017	015	020	022	013
Head length (mm)	4.0	4.4	5.0	5.0	7.0	9.0	9.0	10.0	10.0	12.0	10.0	5.0

Robot Points FG: shapes, ISO numbers and article numbers (23–34)
Shape	Tapered Cylinder, round end

REF (6 pcs.)	0831-1	832X-1	0832-1	832F-1	0833-1	833V-1	0834-1	835X-1	835C-1	0835-1	835F-1	0836-1
Max. speed (rpm)	300,000	450,000	450,000	450,000	300,000	300,000	300,000	300,000	300,000	300,000	300,000	300,000
ISO No.	013	018	016	015	017	018	016	019	018	018	016	021
Head length (mm)	9.0	7.0	7.0	7.0	9.0	9.0	10.0	9.0	9.0	9.0	9.0	9.0

Robot Points FG: shapes, ISO numbers and article numbers (35–46)
Shape	Tapered Cylinder, round end					Tapered Cylinder, corner round

REF (6 pcs.)	836V-1	0837-1	0838-1	0839-1	839V-1	0789-1	789V-1	0790-1	790V-1	0791-1	791V-1	0792-1
Max. speed (rpm)	300,000	300,000	300,000	300,000	300,000	450,000	450,000	300,000	300,000	450,000	450,000	300,000
ISO No.	021	023	023	023	023	018	018	021	021	018	018	019
Head length (mm)	9.0	9.0	11.5	9.0	9.0	4.0	4.0	5.0	5.0	7.0	7.0	10.0

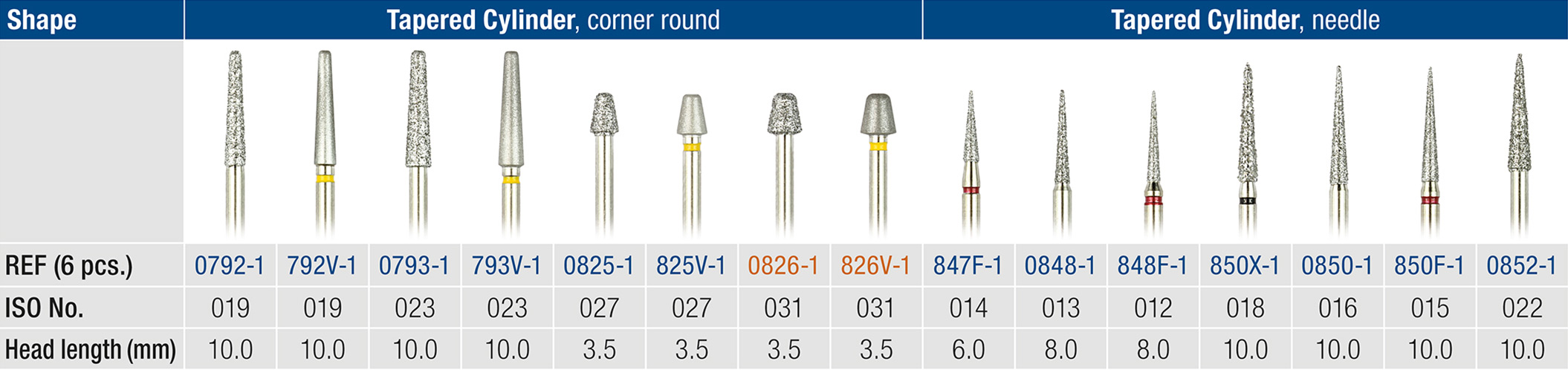

Robot Points FG: shapes, ISO numbers and article numbers (47–53)
Shape	Tapered Cylinder, corner round

REF (6 pcs.)	792V-1	0793-1	793V-1	0825-1	825V-1	0826-1	826V-1
Max. speed (rpm)	300,000	300,000	300,000	300,000	300,000	160,000	160,000
ISO No.	019	023	023	027	027	031	031
Head length (mm)	10.0	10.0	10.0	3.5	3.5	3.5	3.5

Robot Points FG: shapes, ISO numbers and article numbers (54–60)
Shape	Tapered Cylinder, needle

REF (6 pcs.)	847F-1	0848-1	848F-1	850X-1	0850-1	850F-1	0852-1
Max. speed (rpm)	300,000	300,000	300,000	300,000	300,000	300,000	300,000
ISO No.	014	013	012	018	016	015	022
Head length (mm)	6.0	8.0	8.0	10.0	10.0	10.0	10.0

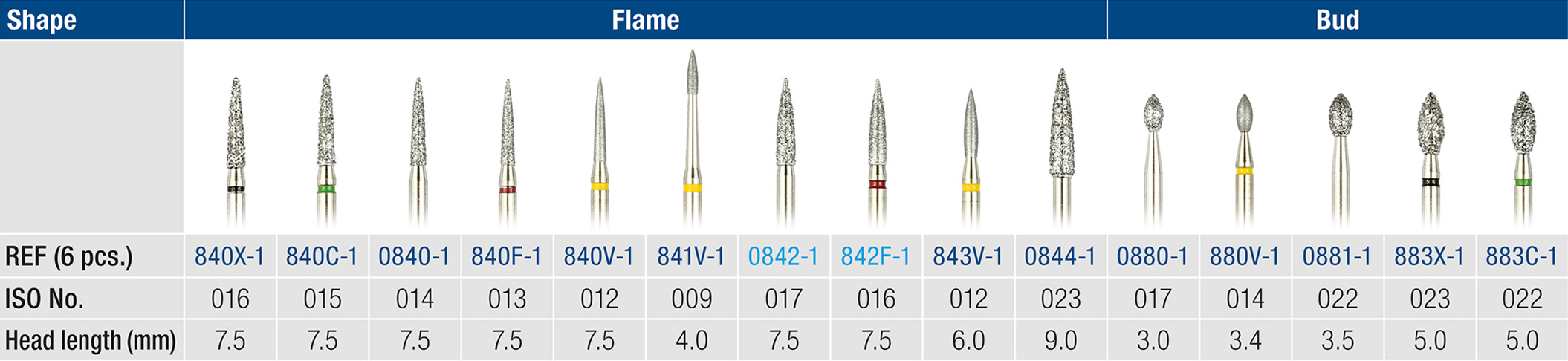

Robot Points FG: shapes, ISO numbers and article numbers (61–70)
Shape	Flame

REF (6 pcs.)	840X-1	840C-1	0840-1	840F-1	840V-1	841V-1	0842-1	842F-1	843V-1	0844-1
Max. speed (rpm)	300,000	300,000	300,000	300,000	300,000	300,000	450,000	450,000	300,000	300,000
ISO No.	016	015	014	013	012	009	017	016	012	023
Head length (mm)	7.5	7.5	7.5	7.5	7.5	4.0	7.5	7.5	6.0	9.0

Robot Points FG: shapes, ISO numbers and article numbers (71–78)
Shape	Bud

REF (6 pcs.)	0880-1	880V-1	0881-1	883X-1	883C-1	0883-1	883F-1	883V-1
Max. speed (rpm)	300,000	300,000	300,000	300,000	300,000	300,000	300,000	300,000
ISO No.	017	014	022	023	022	022	020	019
Head length (mm)	3.0	3.4	3.5	5.0	5.0	5.0	5.0	5.0

Robot Points FG: shapes, ISO numbers and article numbers (79–89)
Shape	Inverted Cone S Type						Inverted Cone

REF (6 pcs.)	0855-1	0856-1	0858-1	0859-1	0860-1	0861-1	0864-1	0865-1	0866-1	0868-1	0870-1
Max. speed (rpm)	450,000	450,000	300,000	450,000	450,000	450,000	450,000	450,000	300,000	450,000	300,000
ISO No.	013	018	021	010	015	017	014	016	025	020	024
Head length (mm)	1.5	2.0	2.3	2.2	3.6	3.5	1.4	1.6	1.7	4.4	7.0

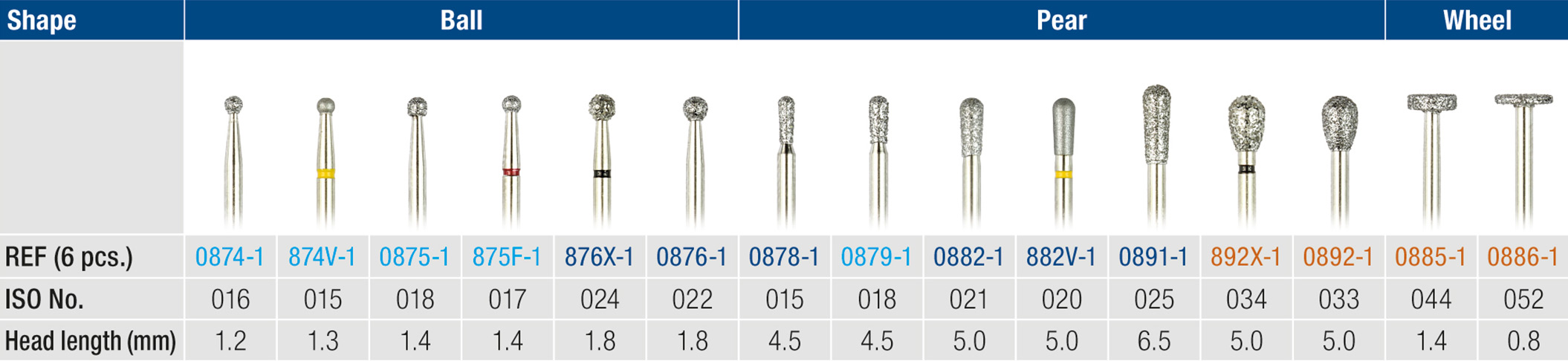

Robot Points FG: shapes, ISO numbers and article numbers (90–96)
Shape	Ball

REF (6 pcs.)	0872-1	0874-1	874V-1	0875-1	875F-1	876X-1	0876-1
Max. speed (rpm)	450,000	450,000	450,000	450,000	450,000	300,000	300,000
ISO No.	014	016	015	018	017	024	022
Head length (mm)	1.0	1.2	1.3	1.4	1.4	1.8	1.8

Robot Points FG: shapes, ISO numbers and article numbers (97–107)
Shape	Pear							Wheel		Wheel, knife edge

REF (6 pcs.)	0878-1	0879-1	0882-1	882V-1	0891-1	892X-1	0892-1	0885-1	0886-1	0888-1	0890-1
Max. speed (rpm)	300,000	450,000	300,000	300,000	300,000	160,000	160,000	160,000	160,000	300,000	160,000
ISO No.	015	018	021	020	025	034	033	044	052	028	050
Head length (mm)	4.5	4.5	5.0	5.0	6.5	5.0	5.0	1.4	0.8	0.8	1.2

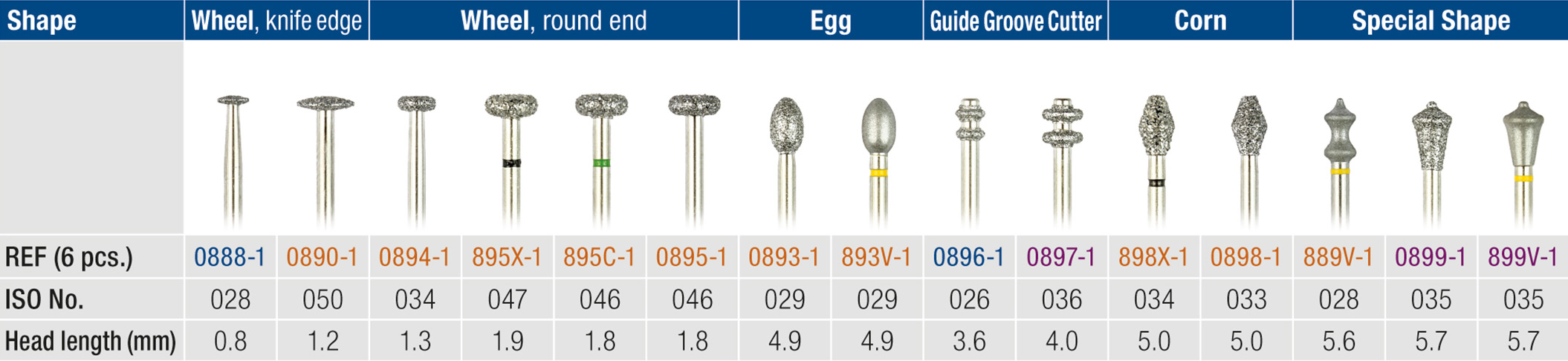

Robot Points FG: shapes, ISO numbers and article numbers (108–117)
Shape	Wheel, round end				Egg		Guide Groove Cutter		Corn

REF (6 pcs.)	0894-1	895X-1	895C-1	0895-1	0893-1	893V-1	0896-1	0897-1	898X-1	0898-1
Max. speed (rpm)	160,000	160,000	160,000	160,000	160,000	160,000	300,000	120,000	160,000	160,000
ISO No.	034	047	046	046	029	029	026	036	034	033
Head length (mm)	1.3	1.9	1.8	1.8	4.9	4.9	3.6	4.0	5.0	5.0

Robot Points FG: shapes, ISO numbers and article numbers (118–126)
Shape	Special Shape			MI Preparation

REF (6 pcs.)	889V-1	0899-1	899V-1	0944-1	0945-1	0946-1	0947-1	0948-1	0949-1
Max. speed (rpm)	160,000	120,000	120,000	300,000	300,000	300,000	300,000	300,000	300,000
ISO No.	028	035	035	009	011	013	008	010	012
Head length (mm)	5.6	5.7	5.7	0.7	0.9	1.1	2.0	2.0	2.0

Straight Cylinder(6)

Robot Points FG: shapes, ISO numbers and article numbers – Straight Cylinder
REF (6 pcs.)	ISO No.	Head length (mm)	Max. speed (rpm)
0800-1	010	4.0	300,000
0801-1	013	4.5	450,000
0803-1	015	7.0	300,000
0805-1	016	7.0	450,000
0807-1	018	7.0	450,000
808V-1	013	8.0	300,000

Straight Cylinder, round end(4)

Robot Points FG: shapes, ISO numbers and article numbers – Straight Cylinder, round end
REF (6 pcs.)	ISO No.	Head length (mm)	Max. speed (rpm)
845X-1	016	8.0	300,000
845C-1	015	8.0	300,000
0846-1	016	8.0	300,000
846F-1	014	8.0	300,000

Tapered Cylinder, flat end(12)

Robot Points FG: shapes, ISO numbers and article numbers – Tapered Cylinder, flat end
REF (6 pcs.)	ISO No.	Head length (mm)	Max. speed (rpm)
0810-1	012	4.0	300,000
0812-1	017	4.4	450,000
0813-1	017	5.0	450,000
0814-1	022	5.0	300,000
0816-1	016	7.0	450,000
817C-1	019	9.0	300,000
0818-1	021	9.0	300,000
0820-1	017	10.0	300,000
820F-1	015	10.0	300,000
0822-1	020	12.0	160,000
0824-1	022	10.0	300,000
0830-1	013	5.0	300,000

Tapered Cylinder, round end(17)

Robot Points FG: shapes, ISO numbers and article numbers – Tapered Cylinder, round end
REF (6 pcs.)	ISO No.	Head length (mm)	Max. speed (rpm)
0831-1	013	9.0	300,000
832X-1	018	7.0	450,000
0832-1	016	7.0	450,000
832F-1	015	7.0	450,000
0833-1	017	9.0	300,000
833V-1	018	9.0	300,000
0834-1	016	10.0	300,000
835X-1	019	9.0	300,000
835C-1	018	9.0	300,000
0835-1	018	9.0	300,000
835F-1	016	9.0	300,000
0836-1	021	9.0	300,000
836V-1	021	9.0	300,000
0837-1	023	9.0	300,000
0838-1	023	11.5	300,000
0839-1	023	9.0	300,000
839V-1	023	9.0	300,000

Tapered Cylinder, corner round(14)

Robot Points FG: shapes, ISO numbers and article numbers – Tapered Cylinder, corner round
REF (6 pcs.)	ISO No.	Head length (mm)	Max. speed (rpm)
0789-1	018	4.0	450,000
789V-1	018	4.0	450,000
0790-1	021	5.0	300,000
790V-1	021	5.0	300,000
0791-1	018	7.0	450,000
791V-1	018	7.0	450,000
0792-1	019	10.0	300,000
792V-1	019	10.0	300,000
0793-1	023	10.0	300,000
793V-1	023	10.0	300,000
0825-1	027	3.5	300,000
825V-1	027	3.5	300,000
0826-1	031	3.5	160,000
826V-1	031	3.5	160,000

Tapered Cylinder, needle(7)

Robot Points FG: shapes, ISO numbers and article numbers – Tapered Cylinder, needle
REF (6 pcs.)	ISO No.	Head length (mm)	Max. speed (rpm)
847F-1	014	6.0	300,000
0848-1	013	8.0	300,000
848F-1	012	8.0	300,000
850X-1	018	10.0	300,000
0850-1	016	10.0	300,000
850F-1	015	10.0	300,000
0852-1	022	10.0	300,000

Flame(10)

Robot Points FG: shapes, ISO numbers and article numbers – Flame
REF (6 pcs.)	ISO No.	Head length (mm)	Max. speed (rpm)
840X-1	016	7.5	300,000
840C-1	015	7.5	300,000
0840-1	014	7.5	300,000
840F-1	013	7.5	300,000
840V-1	012	7.5	300,000
841V-1	009	4.0	300,000
0842-1	017	7.5	450,000
842F-1	016	7.5	450,000
843V-1	012	6.0	300,000
0844-1	023	9.0	300,000

Bud(8)

Robot Points FG: shapes, ISO numbers and article numbers – Bud
REF (6 pcs.)	ISO No.	Head length (mm)	Max. speed (rpm)
0880-1	017	3.0	300,000
880V-1	014	3.4	300,000
0881-1	022	3.5	300,000
883X-1	023	5.0	300,000
883C-1	022	5.0	300,000
0883-1	022	5.0	300,000
883F-1	020	5.0	300,000
883V-1	019	5.0	300,000

Inverted Cone S Type(6)

Robot Points FG: shapes, ISO numbers and article numbers – Inverted Cone S Type
REF (6 pcs.)	ISO No.	Head length (mm)	Max. speed (rpm)
0855-1	013	1.5	450,000
0856-1	018	2.0	450,000
0858-1	021	2.3	300,000
0859-1	010	2.2	450,000
0860-1	015	3.6	450,000
0861-1	017	3.5	450,000

Inverted Cone(5)

Robot Points FG: shapes, ISO numbers and article numbers – Inverted Cone
REF (6 pcs.)	ISO No.	Head length (mm)	Max. speed (rpm)
0864-1	014	1.4	450,000
0865-1	016	1.6	450,000
0866-1	025	1.7	300,000
0868-1	020	4.4	450,000
0870-1	024	7.0	300,000

Ball(7)

Robot Points FG: shapes, ISO numbers and article numbers – Ball
REF (6 pcs.)	ISO No.	Head length (mm)	Max. speed (rpm)
0872-1	014	1.0	450,000
0874-1	016	1.2	450,000
874V-1	015	1.3	450,000
0875-1	018	1.4	450,000
875F-1	017	1.4	450,000
876X-1	024	1.8	300,000
0876-1	022	1.8	300,000

Pear(7)

Robot Points FG: shapes, ISO numbers and article numbers – Pear
REF (6 pcs.)	ISO No.	Head length (mm)	Max. speed (rpm)
0878-1	015	4.5	300,000
0879-1	018	4.5	450,000
0882-1	021	5.0	300,000
882V-1	020	5.0	300,000
0891-1	025	6.5	300,000
892X-1	034	5.0	160,000
0892-1	033	5.0	160,000

Wheel(2)

Robot Points FG: shapes, ISO numbers and article numbers – Wheel
REF (6 pcs.)	ISO No.	Head length (mm)	Max. speed (rpm)
0885-1	044	1.4	160,000
0886-1	052	0.8	160,000

Wheel, knife edge(2)

Robot Points FG: shapes, ISO numbers and article numbers – Wheel, knife edge
REF (6 pcs.)	ISO No.	Head length (mm)	Max. speed (rpm)
0888-1	028	0.8	300,000
0890-1	050	1.2	160,000

Wheel, round end(4)

Robot Points FG: shapes, ISO numbers and article numbers – Wheel, round end
REF (6 pcs.)	ISO No.	Head length (mm)	Max. speed (rpm)
0894-1	034	1.3	160,000
895X-1	047	1.9	160,000
895C-1	046	1.8	160,000
0895-1	046	1.8	160,000

Egg(2)

Robot Points FG: shapes, ISO numbers and article numbers – Egg
REF (6 pcs.)	ISO No.	Head length (mm)	Max. speed (rpm)
0893-1	029	4.9	160,000
893V-1	029	4.9	160,000

Guide Groove Cutter(2)

Robot Points FG: shapes, ISO numbers and article numbers – Guide Groove Cutter
REF (6 pcs.)	ISO No.	Head length (mm)	Max. speed (rpm)
0896-1	026	3.6	300,000
0897-1	036	4.0	120,000

Corn(2)

Robot Points FG: shapes, ISO numbers and article numbers – Corn
REF (6 pcs.)	ISO No.	Head length (mm)	Max. speed (rpm)
898X-1	034	5.0	160,000
0898-1	033	5.0	160,000

Special Shape(3)

Robot Points FG: shapes, ISO numbers and article numbers – Special Shape
REF (6 pcs.)	ISO No.	Head length (mm)	Max. speed (rpm)
889V-1	028	5.6	160,000
0899-1	035	5.7	120,000
899V-1	035	5.7	120,000

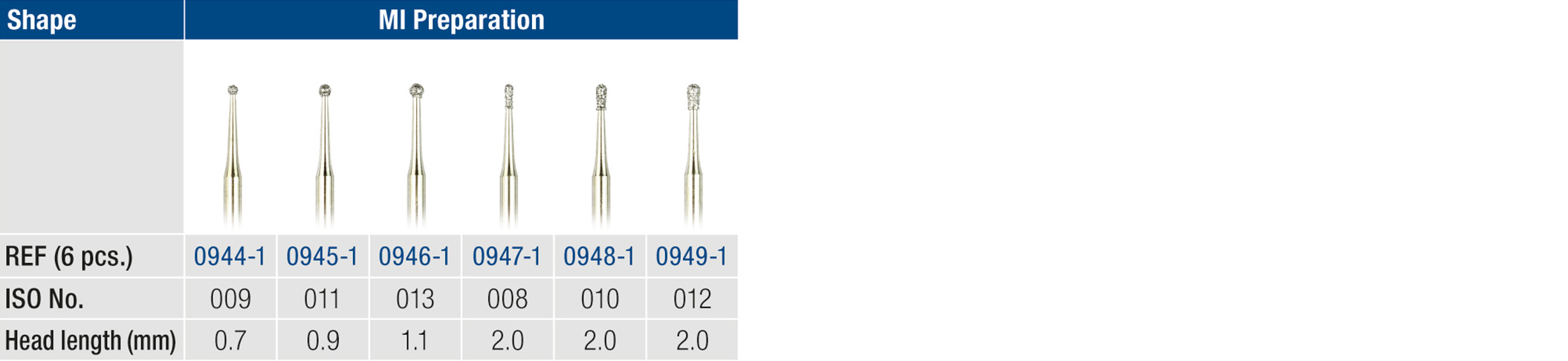

MI Preparation(6)

Robot Points FG: shapes, ISO numbers and article numbers – MI Preparation
REF (6 pcs.)	ISO No.	Head length (mm)	Max. speed (rpm)
0944-1	009	0.7	300,000
0945-1	011	0.9	300,000
0946-1	013	1.1	300,000
0947-1	008	2.0	300,000
0948-1	010	2.0	300,000
0949-1	012	2.0	300,000

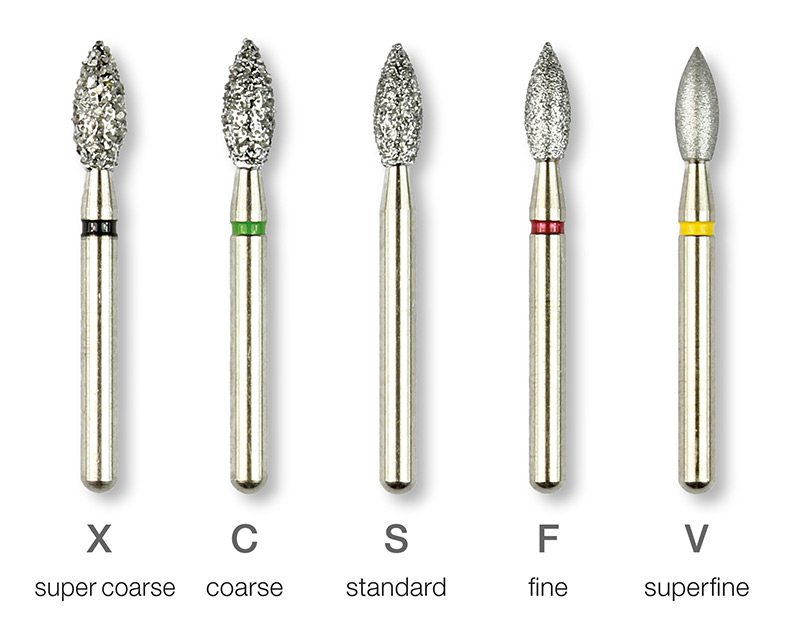

Standard / S – Standard grained diamonds without shank marking
Super coarse / X – Super-coarse diamonds with black-banded shank
Coarse / C – Coarse diamonds with green-banded shank
Fine / F – Fine diamonds with red-banded shank
Superfine / V – Superfine diamonds with yellow-banded shank

Speed Min⁻¹: Recom. 120,000 - 450,000 / CP 0 - 0.8 N

Info:
Robot Points FG should always be used intermittently with low pressure and water cooling.
The colour coding of the order number indicates the individual maximum speed:
Cyan: max. 450,000 rpm
Blue: max. 300,000 rpm
Orange: max. 160,000 rpm
Violet: max. 120,000 rpm

Solution: Removable prosthetics

Removable dentures are as individual as patients. Efficiency may matter, or maximal individualisation. Our well-matched materials for denture teeth, gingival design, veneering, and finishing enable to form a flexible prosthetic concept – ranging from cost-effective standard solutions to highly aesthetic individualisations.

View solution:
