Coarse (C – no shank marking):
for rapid reduction of the shoulder margin into the gingival sulcus
Fine (F – red-banded shank):
for smooth finishing of the shoulder margin, finishing subgingival shoulder preparation
The short head (S – in coarse grit only):
is recommended when accessibility is limited.

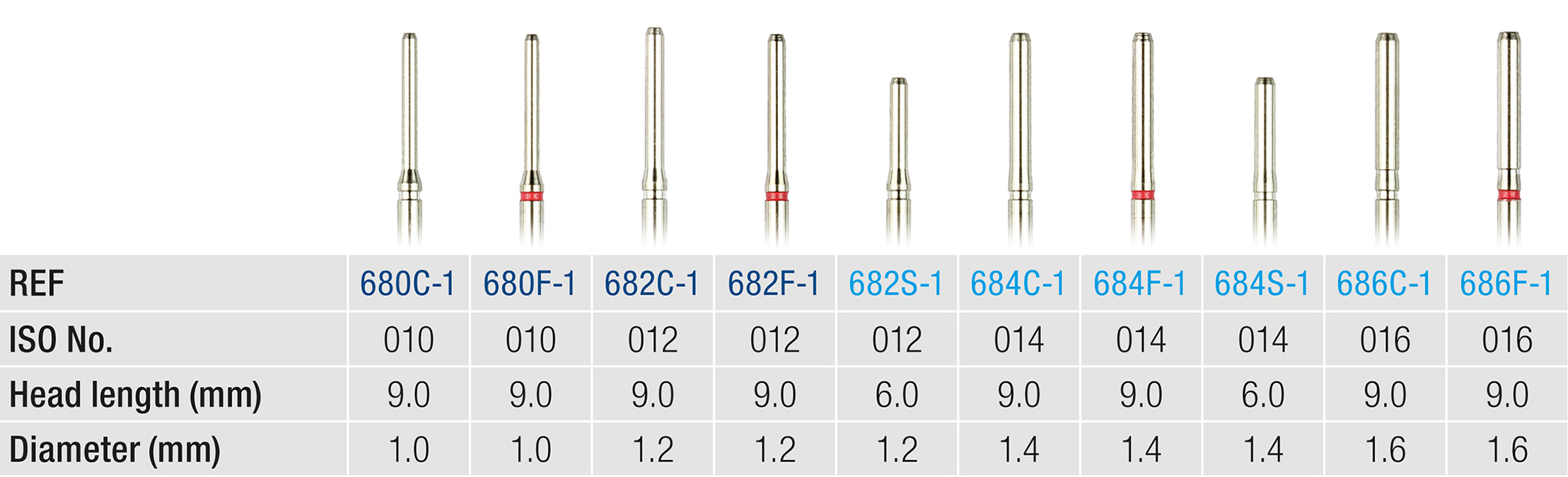

| REF | 680C-1 | 680F-1 | 682C-1 | 682F-1 | 682S-1 | 684C-1 | 684F-1 | 684S-1 | 686C-1 | 686F-1 |
|---|---|---|---|---|---|---|---|---|---|---|
| Max. speed (rpm) | 300,000 | 300,000 | 300,000 | 300,000 | 450,000 | 450,000 | 450,000 | 450,000 | 450,000 | 450,000 |
| ISO No. | 010 | 010 | 012 | 012 | 012 | 014 | 014 | 014 | 016 | 016 |
| Head length (mm) | 9.0 | 9.0 | 9.0 | 9.0 | 6.0 | 9.0 | 9.0 | 6.0 | 9.0 | 9.0 |
| Diameter (mm) | 1.0 | 1.0 | 1.2 | 1.2 | 1.2 | 1.4 | 1.4 | 1.4 | 1.6 | 1.6 |
| REF | ISO No. | Head length (mm) | Diameter (mm) | Max. speed (rpm) |
|---|---|---|---|---|
| 680C-1 | 010 | 9.0 | 1.0 | 300,000 |
| 680F-1 | 010 | 9.0 | 1.0 | 300,000 |
| 682C-1 | 012 | 9.0 | 1.2 | 300,000 |
| 682F-1 | 012 | 9.0 | 1.2 | 300,000 |
| 682S-1 | 012 | 6.0 | 1.2 | 450,000 |
| 684C-1 | 014 | 9.0 | 1.4 | 450,000 |
| 684F-1 | 014 | 9.0 | 1.4 | 450,000 |
| 684S-1 | 014 | 6.0 | 1.4 | 450,000 |
| 686C-1 | 016 | 9.0 | 1.6 | 450,000 |
| 686F-1 | 016 | 9.0 | 1.6 | 450,000 |
Product details
REF
Quantity
Product
680C-1 - 686-F-1
6 St.
TPE Diamanten Schaft FG Die Formen, erhältlich in den Durchmessern 1,0, 1,2, 1,4 und 1,6 mm sind einzeln in Kunststoffbehältern verpackt. Packungseinheit: 6 St.
- Speed Min−1
- Recom. 300,000 - 450,000 / CP 0 - 0.8 N
Info:
The colour coding of the order number indicates the individual maximum speed:
Cyan: max. 450,000 rpm
Blue: max. 300,000 rpm
Downloads
Here you can download product-relevant documents as PDF files.
Preparation instructions
